Bluetti B500 Batterie

Bluetti B500 Batterie

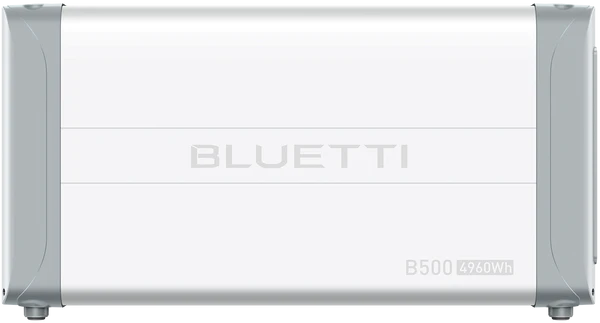

Bluetti B500 Batterie Erweiterungsmodul 5KWh

Kopple bis zu 16x 5KW B500 Module auf 79.3 KWh

6000 Watt Leistung
Für EB600 Hybrid & Off-Grid 6-12KVA
5000 Wh Kapazität
4.96 KWh Stromspeicher
Erweiterbar bis 79.3 KWh
Verbinde 16x B500 mit dem EP600

Voraussichtliche Lieferung: 5-7 Tage

Videos

Tech specs

BATTERY INFO

  • Capacity: 4960Wh (51.2V, 60Ah) (4.96 KWh)
  • Type: LiFePO4 (Lithium Iron Phosphate)
  • Life Cycles: 6000+ Cycles to 80% Original Capacity
  • Shelf-life: Recharge to 80% Every 3-6 Months
  • Management System: MPPT Controller, BMS, etc.
  • Chemistry: LiFePO4
  • Noise: 25DB
  • Cooling: Passive
  • Working Temperature: -20"C to 40°C
  • Dimensions (LxBxH): 636mm x 325mm x 338mm
  • Weight: 56 kg
  • IP Rating: IP665

Management System

  • Anti-islanding Protection
  • Residual Current Monitor
  • Output Overcurrent Protection
  • Short-circuit Protection
  • Charge Over/Under Temperature Protection, Discharge Over/Under Temperatur Protection
  • Reverse Polarity Protection
  • Insulation Resistance Detection
  • Arching Protection
  • Cell Over/Undervoltage Protection

Einhaltung der Vorschriften

  • Safety: IEC62109--1, IEC62109-2, EN62109-1, EN62109-2
  • Emissions: (EMC/EMI) VDE-AR-N 4105, VDE V 0124-100
  • RoHS: RoHS 2.0
  • Certifications: CE, TÜV, Certificate of The Network and System Protection, Zertifikat für den Netz- und Anlagenschutz in Kombination mit EP600

RECHARGE TIME

  • AC: ≈ 0.75 Hours at 6000W
  • Solar: ≈ 1.5 Hours at 3000W
  • Energy Efficiency Rato (EER): 93.6%
