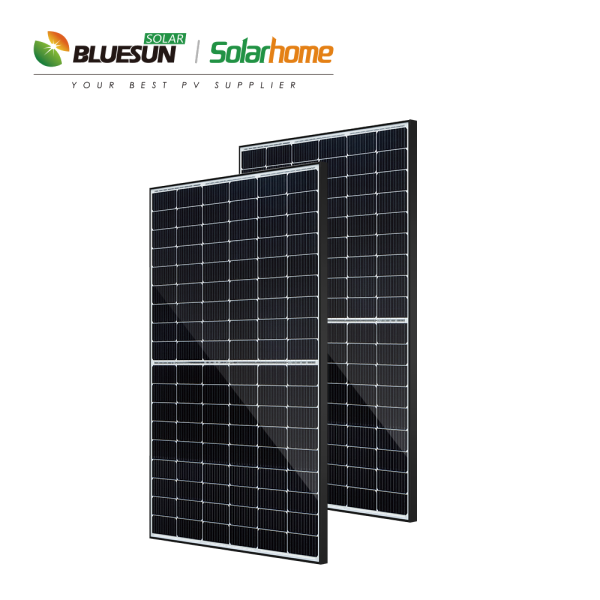

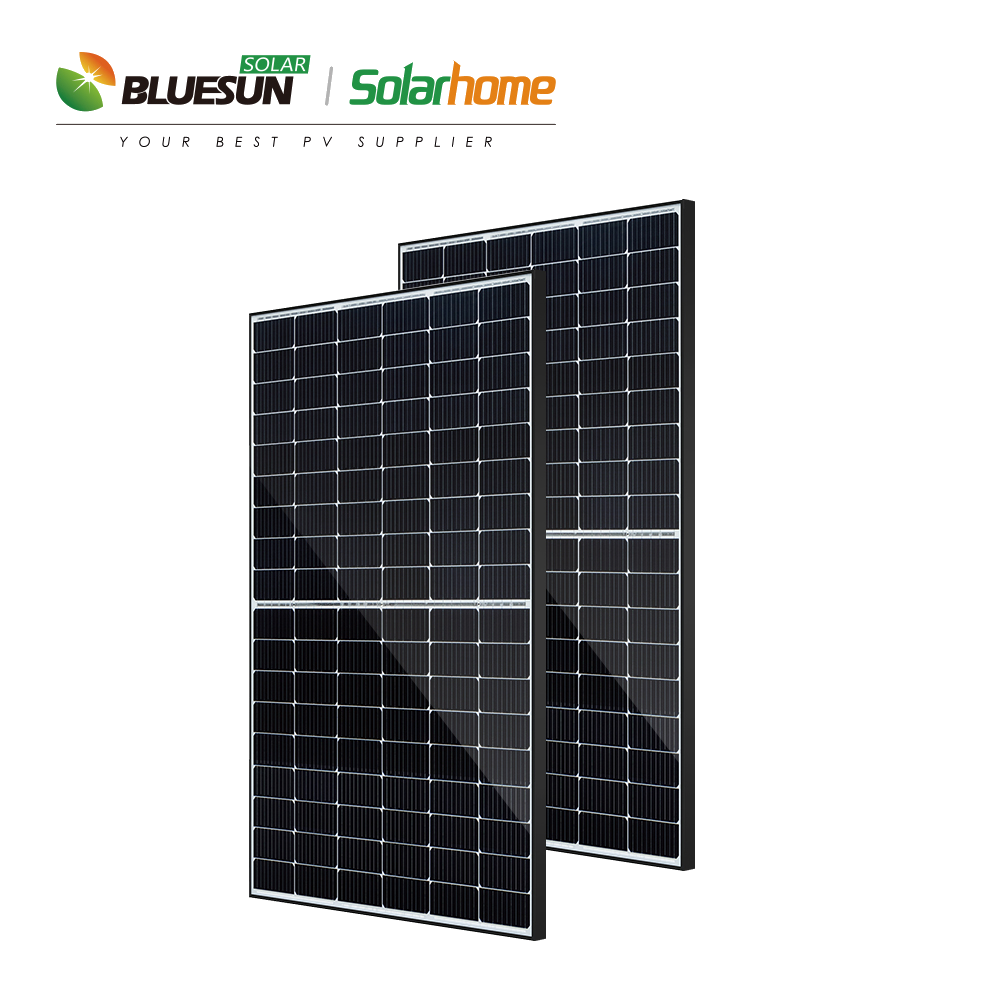

Bluesun BSM425G12-54 Full Black
Mono Facial Black Frame

425W Power packed in easy lifting dimensions

High module conversion efficiency
PERC, Half Cell Technology, new circuit design, lower internal current, lower Rs loss
Withstanding harsh environment
Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
Excellent weak light performance
More power output in weak light condition, such as cloudy, morning and sunset
Extended wind & snow load
Certified to withstand extreme wind (2400 Pa) & snow loads (5400 Pa)
Module efficienty 21.7
Outstanding Performance for a monocristaline all black framed Panel
Easy to Install & Handle
The Size of 1722x1134x30mm is comfortable for Installateurs

Voraussichtliche Lieferung: 3-6 Tage

Tech specs

MECHANICAL SPECIFICATION

  • Cell Type: Monocrystalline
  • Cell Dimensions: 182x182mm
  • Cell Arrangement: 108 (6x18)
  • Weight 21.5kg
  • Module Dimensions: 1722x1134x30mm
  • Cable Length: Portrait 300mm/Landscape 1200mm/Customized
  • Cable Cross Section Size: TUV: 4mm2 (0.006inches2 )/UL: 12AWG
  • Front Glas: 3.2mm (0.13inches) AR Coating Tempered Glass
  • Module Efficiency: 21.7%

OPERATING CONDITIONS

  • Maximun System Voltage: 1000V/1500V/DC(IEC)
  • Operating Temperature: -40°C~ +85°C
  • Maximun Series Fuse: 25A
  • Static Loading: Snow Loading: 5400Pa/ Wind Loading: 2400Pa
  • Conductivity at Ground: ≤0.1Ω
  • Safety Class: II
  • Resistance: ≥100MΩ
  • Connector: T01/LJQ-3-CSY/MC4/MC4-EVO2

TEMPERATURE COEFFICIENT

  • Temperature Coefficient Pmax: -0.35%/°C
  • Temperature Coefficient Voc: -0.26%/°C
  • Temperature Coefficient Isc: +0.048%/°C
  • NMOT: 43±2°C

Package Infos

32 Pc per Euro Palette. For quantity discount please contact us
