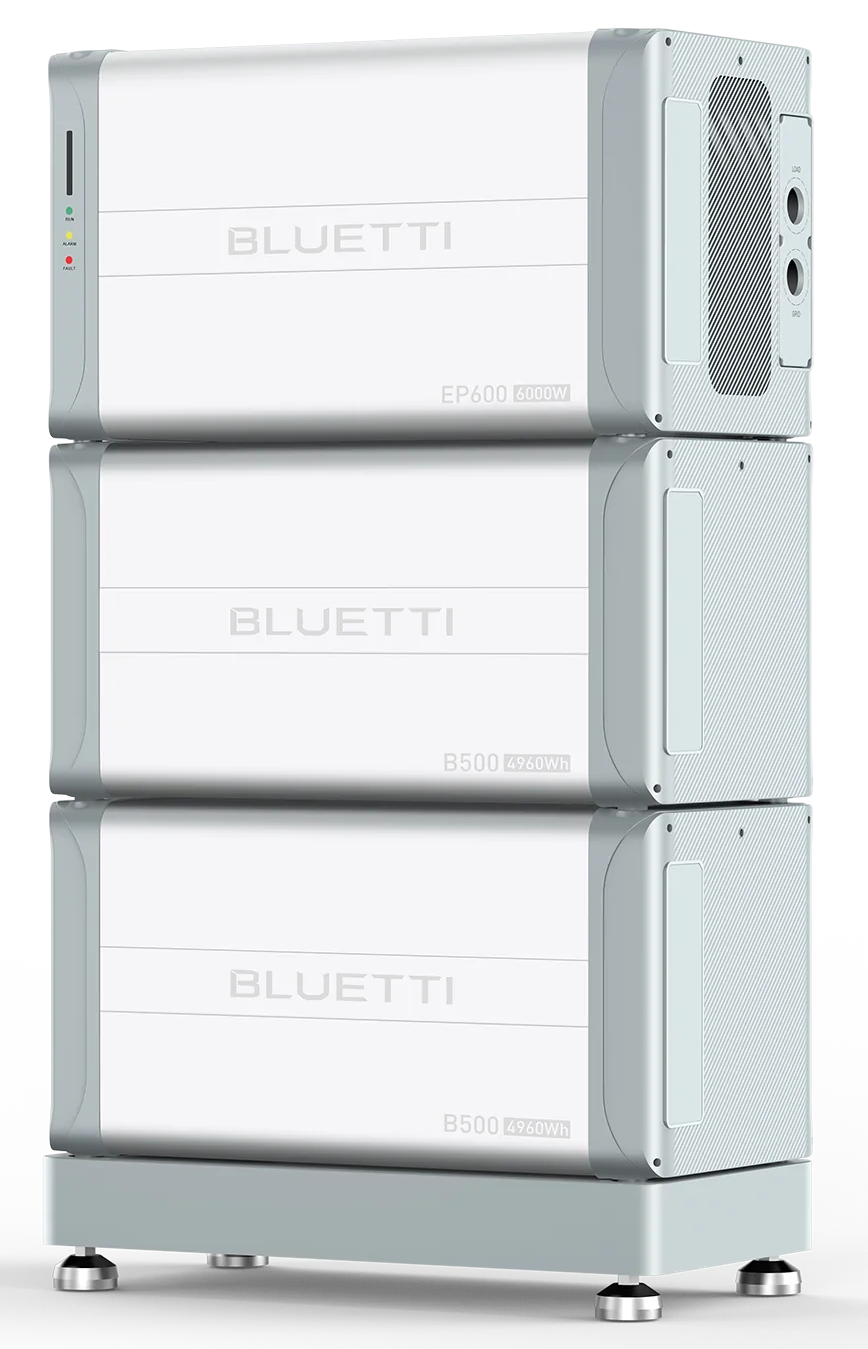

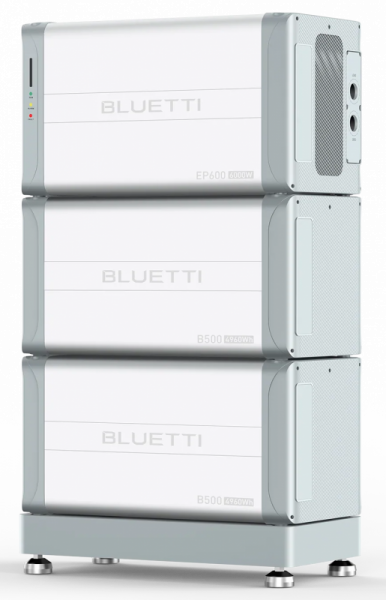

EP600-B500
6-12KVA Hybrid Inverter | 10KWh - 80 KWh ESS

Certified for grid feeding. 230V / 400V system for hybrid or off-grid.

6000-12000 watts power with Pure Sine Wave 50Hz
6000W solar & 6000W AC input power
9.9 KWh - 79.4 KWh modular
Energy Storage
Live self-sufficiently for up to 8 days without sun & electricity
Expandable to 12KVA output & 12KW solar & AC
Buy 2 EP600 and double to 12KVA power

We start shipping: 31. Jan. 2023

Videos

Tech specs

EP600 Energy Storage System 6KVA (1 EP600)

Capacity: 9.9 KWh - 79.3 KWh (2 - 16 B500 battery modules)

  • Output power: 6KW
  • Maximum input power: 12KVA
  • Maximum input voltage: 18A
  • Input frequency: 50Hz
  • Round Trip Efficiency: >82% (AC/AC)
  • On-Grid/OffGrid Response Time: <10ms.
  • Phases: L1/L2/L3/PE

Features

  • 24/ UPS function
  • Adjustable energy plan
  • Peak Load Shifting,
  • App remote control via WiFi or Bluetooth or USB
  • Automatic over the air firmware update

Simple & Powerful

  • Easy startup indoors as well as outdoors
  • Household AC cable connections
  • 6000W Pure Sine Wave
  • 79KWh Battery Storage Addressing

Safety Management System

  • Anti islanding Protection
  • Residual Current Monitor
  • Output Overcurrent Protection
  • Short-circuit Protection
  • Reverse Polarity Protection
  • Insulation Resistance Protection
  • Arching Protection
  • Cell Over/Undervoltage Protection
  • Charge Over/Under Temperature Protection
  • Discharge Over/under Temperature Protection

Regulation Certificates

  • Safety: IEC62109--1, IEC62109-2, EN62109-1, EN62109-2
  • Emissions: (EMC/EMI) VDE-AR-N 4105, VDE V 0124-100
  • IP65: IEC60529
  • RoHS: RoHS 2.0
  • Certifications: CE, TÜV, Certificate of The Network and System Protection, Zertifikat für den Netz- und Anlagenschutz

More Informations on Datashet
